Here's a fact that surprises many plant managers:
Almost 100% of the electricity consumed by a rotary screw air compressor is converted into heat. Even better, up to 96% of this heat can be recovered and reused for productive applications.
Yet, in most manufacturing facilities, this valuable energy is simply exhausted into the atmosphere while the plant simultaneously burns diesel, LPG, or natural gas to generate heat elsewhere.
This means many industries unknowingly pay twice:
- First for electricity to run the compressor.
- Then again for fuel or electricity to produce process heat.
Modern heat recovery systems, such as those offered by Kaeser, convert this "waste heat" into a valuable energy resource, significantly reducing operating costs while improving sustainability.
Two Ways Kaeser Helps You Recover Energy
Unlike conventional systems that simply reject heat, Kaeser offers two highly effective methods of heat recovery.

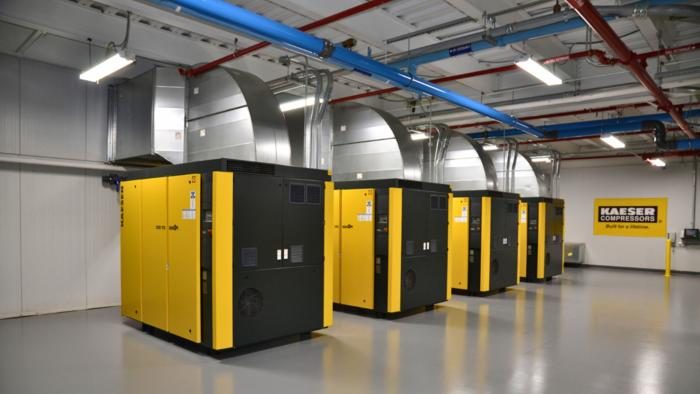

1. Hot Air Heat Recovery — Heating with Air You Already Paid For
One of the simplest and most economical methods is to utilise the compressor's hot cooling air.
Through a properly designed ducting arrangement, the heated air can be redirected wherever heat is required.
Typical applications include:
- Heating production halls
- Warehouses
- Assembly shops
- Paint shops
- Drying applications
- Air curtain systems
- Burner air preheating
Kaeser systems incorporate seasonal ventilation dampers that allow:
Winter Mode
Warm air is diverted into occupied areas for free heating.
Summer Mode
Warm air is exhausted outdoors to prevent unnecessary heating inside the facility.
Since no additional heating equipment is required, operating costs remain virtually zero beyond the compressor's normal electricity consumption.

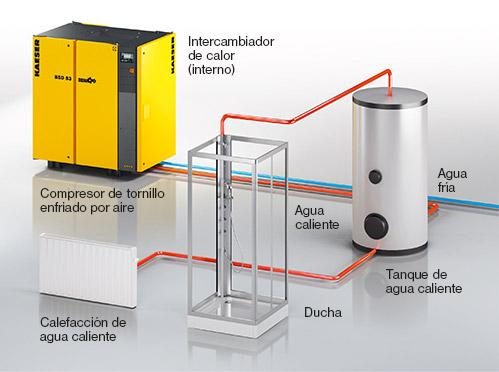

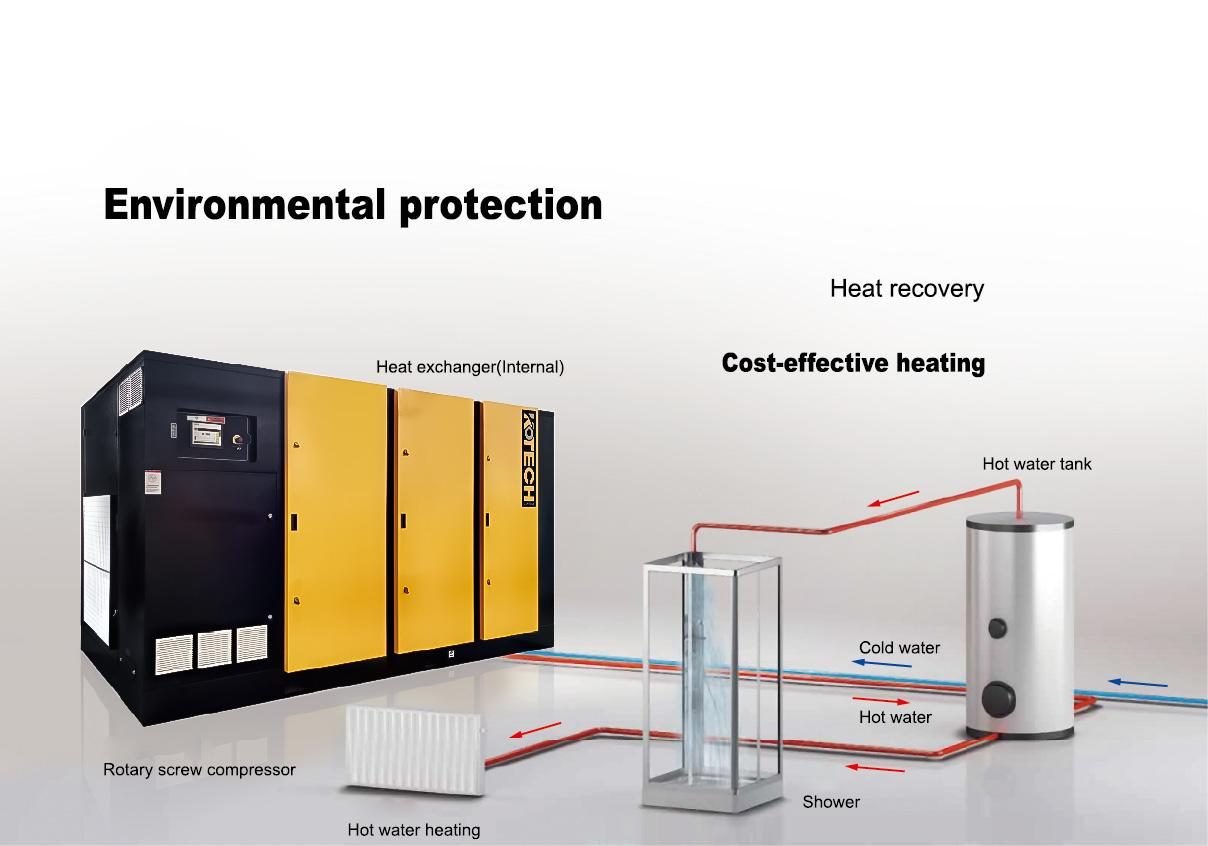

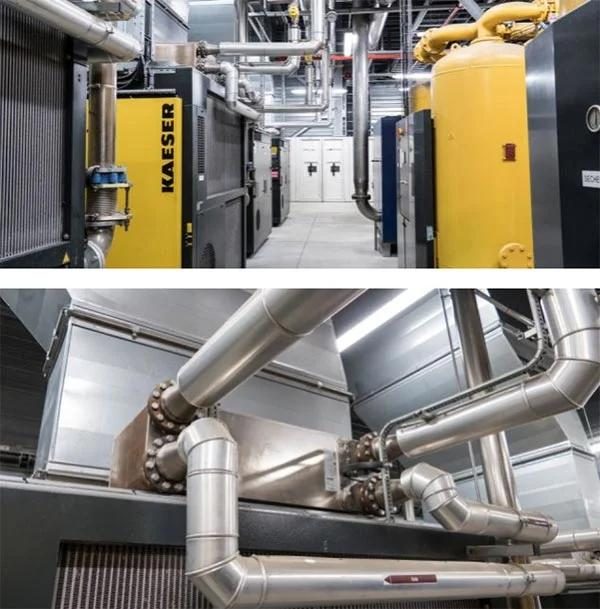

2. Hot Water Heat Recovery — Turning Compressor Heat into Process Energy

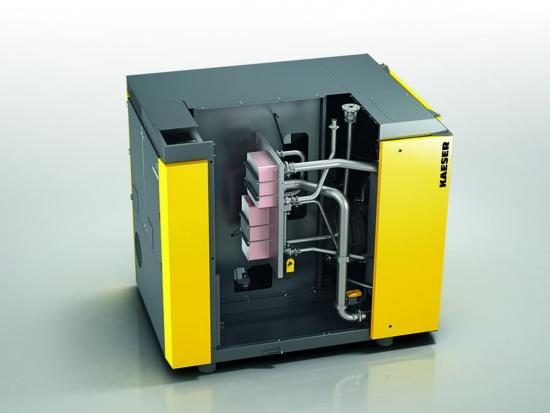

For facilities requiring hot water, Kaeser integrates PTG stainless-steel plate heat exchangers into the compressor's oil cooling circuit.
The recovered thermal energy heats a separate water circuit without mixing oil and water, making the process safe, efficient, and highly reliable.
Depending on the application, hot water temperatures of up to 70°C, and even higher on special systems, can be achieved.
Typical applications include:
- Boiler feed water preheating
- Process water heating
- Cleaning and wash-down systems
- Electroplating plants
- Food and beverage cleaning systems
- Textile processing
- Laundry facilities
- Shower and washroom hot water
- General service water
Every litre of water heated using recovered compressor energy is fuel you no longer need to purchase.
Real Savings with Real Numbers
Heat recovery is not merely an environmental initiative—it delivers measurable financial returns.
For example, a Kaeser BSD 83 (45 kW) compressor can recover approximately 40 kW of usable thermal energy, providing significant annual savings in fuel costs and reducing thousands of kilograms of CO₂ emissions.
Larger systems offer even greater opportunities.
A Kaeser DSD 205 (110 kW) compressor can recover approximately 88 kW of heat, generate around 3.0 m³/h of hot water (ΔT 25 K), and deliver substantial annual savings where a continuous heating demand exists.
In one practical heat recovery assessment, recovered compressor heat displaced approximately 42.5 kg of boiler fuel every hour, translating into annual savings of around ₹7 lakh over a 6,000-hour operating year.
For many manufacturers, the payback period for heat recovery is often measured in months rather than years.
Why Many Industries Still Miss This Opportunity
If the economics are so compelling, why isn't every factory recovering compressor heat?
The answer usually comes down to three factors:
No Continuous Heat Demand
Recovered energy is valuable only if there is a consistent need for hot water or heated air.
Heat Recovery Is Considered Too Late
Many organisations purchase compressors first and only discuss heat recovery after installation. The greatest benefits come when heat recovery is considered during the system design stage.
Nobody Performs the Calculations
Every facility is different. Compressor loading, operating hours, fuel type, and process requirements all influence the potential savings. A professional compressed air energy audit identifies the optimum heat recovery solution based on real operating data rather than assumptions.
Industries That Benefit the Most
Heat recovery is particularly effective in industries with continuous heating requirements, including:
Any plant operating compressors for more than 4,000 hours annually should evaluate heat recovery as part of its energy management strategy.
Why Choose Kaeser Heat Recovery Systems?
Kaeser has developed heat recovery solutions that integrate seamlessly with its rotary screw compressors.
Key advantages include:
- Integrated PTG plate heat exchanger technology
- High-quality stainless-steel construction
- Automatic thermostatic control
- Minimal maintenance
- No additional energy consumption beyond normal compressor operation
- Suitable for both new installations and many existing compressor systems
- Reliable German engineering with proven performance worldwide
A Quick Heat Recovery Checklist
Your plant is an excellent candidate for heat recovery if you answer "Yes" to most of the following:
- Rotary screw compressors operate for more than 4,000 hours per year.
- Your plant uses boilers or process heaters.
- Hot water is required for cleaning or production.
- Buildings or workshops require heating.
- You consume diesel, LPG, natural gas, or electricity for heating.
- Energy cost reduction is a strategic priority.
If so, your compressor could become one of the most valuable energy-saving assets in your facility.
Don't Let Valuable Energy Go Up the Vent
Every day, industrial compressors generate enormous quantities of recoverable heat. Most facilities simply discharge this energy into the atmosphere, while continuing to spend heavily on conventional heating.
By implementing Kaeser Heat Recovery Systems, manufacturers can transform an unavoidable by-product into a dependable source of process heat, hot water, and space heating—reducing operating costs, lowering carbon emissions, and improving overall energy efficiency.
The most effective energy-saving project may not involve purchasing another machine. It may simply involve making better use of the energy your compressor is already producing.
Ready to Find Out How Much You Can Save?
Whether you operate a single compressor or a complete compressed air station, a professional heat recovery assessment can identify the available thermal energy, estimate annual savings, and recommend the most suitable Kaeser Hot Air or Hot Water Heat Recovery System for your application.
Advanced Equipment & Solutions Pvt. Ltd. specialises in:
- Compressed air optimisation
- Energy audits
- Kaeser compressed air systems
- Heat recovery assessments
